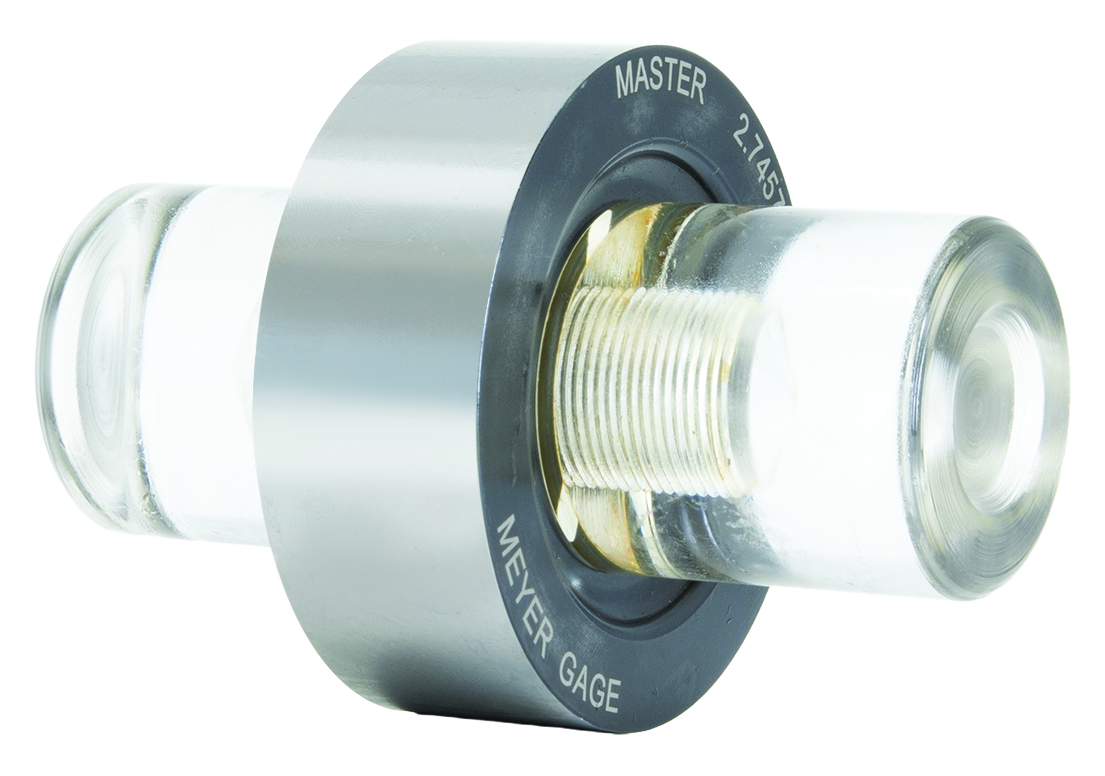

Master Setting Discs
Custom Master Setting Discs
You can use these Master Discs to calibrate and set your measuring equipment. They are a must for your calibration lab and your inspection areas. Meyer’s Master Discs are available in three styles and come with a Certificate of Accuracy.

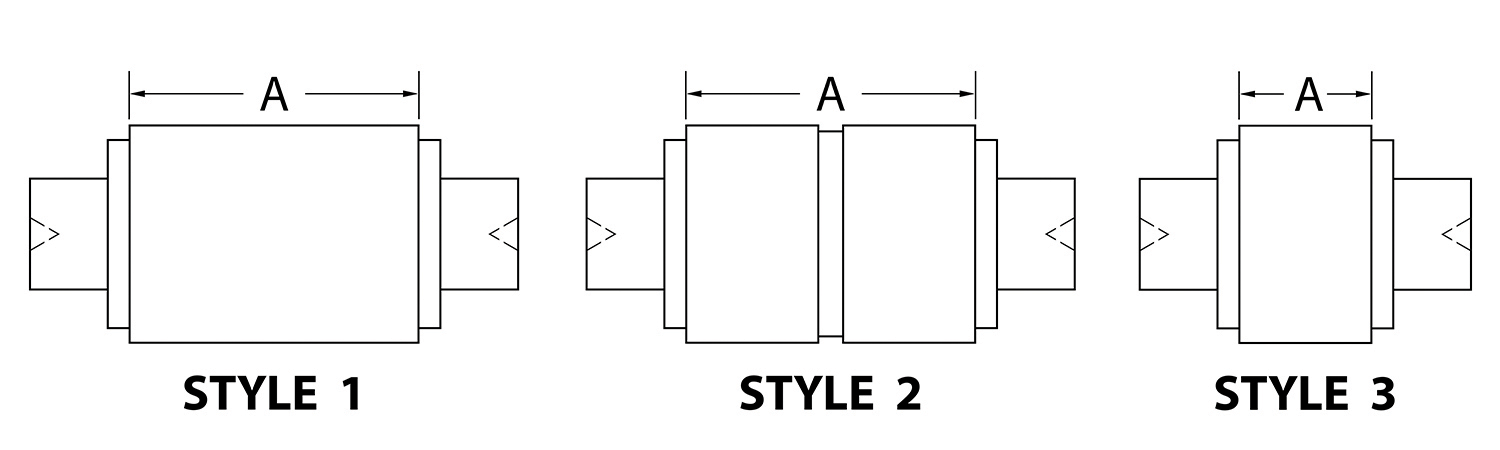

STYLE #1: Bilateral (Split) tolerance
STYLE #2: Unilateral (GO and NOGO)
STYLE #3: Bilateral (Split) tolerance
Master Setting Discs
| Size Range | Style 1 | Style 2 | Style 3 | Grip No. |
||||
| Bilateral Tolerance (A) | Unilateral Tolerance (A) | Bilateral Tolerance (A) | ||||||
| Inch | Metric | Length (in) | Length (mm) | Length (in) | Length (mm) | Length (in) | Length (mm) | |
| 0.2301" to 0.3650" | 5.841mm to 9.270mm | 1'' | 25.4mm | 1'' | 25.4mm | 1/2'' | 12.7mm | 1 |
| 0.3651" to 0.5100" | 9.271mm to 12.950mm | 1-1/8'' | 28.6mm | 1-1/8'' | 28.6mm | 9/16" | 14.3mm | 2 |
| 0.5101" to 0.8250" | 12.951mm to 20.960mm | 1-1/4'' | 31.8mm | 1-1/4'' | 31.8mm | 5/8'' | 15.9mm | 3 |
| 0.8251" to 1.1350" | 20.961mm to 28.830mm | 1-3/8'' | 34.9mm | 1-3/8'' | 34.9mm | 11/16" | 17.5mm | 4 |
| 1.1351" to 1.5100" | 29.831mm to 38.350mm | 1-5/8'' | 41.3mm | 1-5/8'' | 41.3mm | 13/16" | 20.6mm | 5 |
Custom, non-stock items
All tabulated size ranges are inclusive.
Style #2 GO and NOGO sections are separated by a 1/8” recess.
All tabulated size ranges are inclusive.
Style #2 GO and NOGO sections are separated by a 1/8” recess.
FEATURES:
- Available in Class XX, X, Y, and Z
- Available in steel only
- For Style #2, specify GO and NOGO sizes
Note: For style #2 master setting discs in sizes above 1.510″ to and including 8.510″, A.G.D. standards call for using style #3 – with the GO and NOGO separated by an A.G.D. separator plate and linked together with a tie rod and insulators.
Custom items are not returnable. Orders may not be canceled. Call for sizes not shown.
