Calibration Services

Precision Calibration for Unmatched Gage Accuracy and Reliability

Meyer Gage calibration services are essential for maintaining the accuracy and reliability of pin gages, as well as other types of O.D. and I.D. gages. Our calibration process covers a wide range of gages, including trilock & taperlock, progressive, master setting discs, and ring gages. All calibrations are performed by an ISO 9001 and ISO 17025 Accredited lab.

Our climate-controlled inspection room ensures the highest standards of gaging and measurement reliability. To guarantee maximum accuracy, our state-of-the-art laboratory has a custom-designed HVAC system and a microprocessor-based environmental management system that allows us to maintain a consistent temperature of 68°F (+/- 1°) year-round to ensure minimal measurement uncertainty.

Class / Conformance Certificate

This Certificate of Conformance serves as an acknowledgment that the gage has undergone testing in accordance with relevant industrial standards and has been measured using tools that can be traced back to the National Institute of Standards and Technology (NIST). This certificate primarily functions as a manufacturer’s warranty disclaimer and disclosure of limitations.

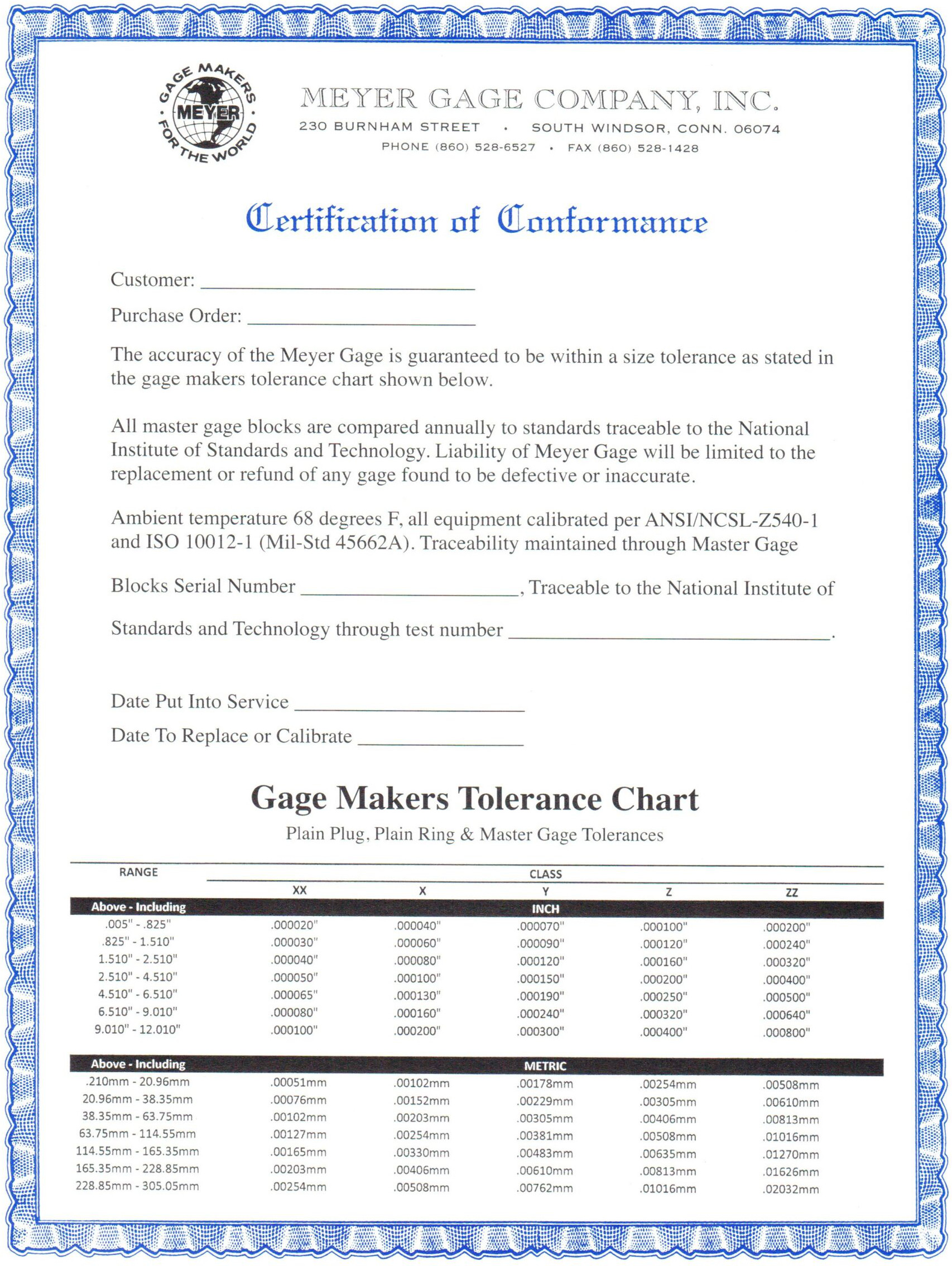

Conformance Certificate

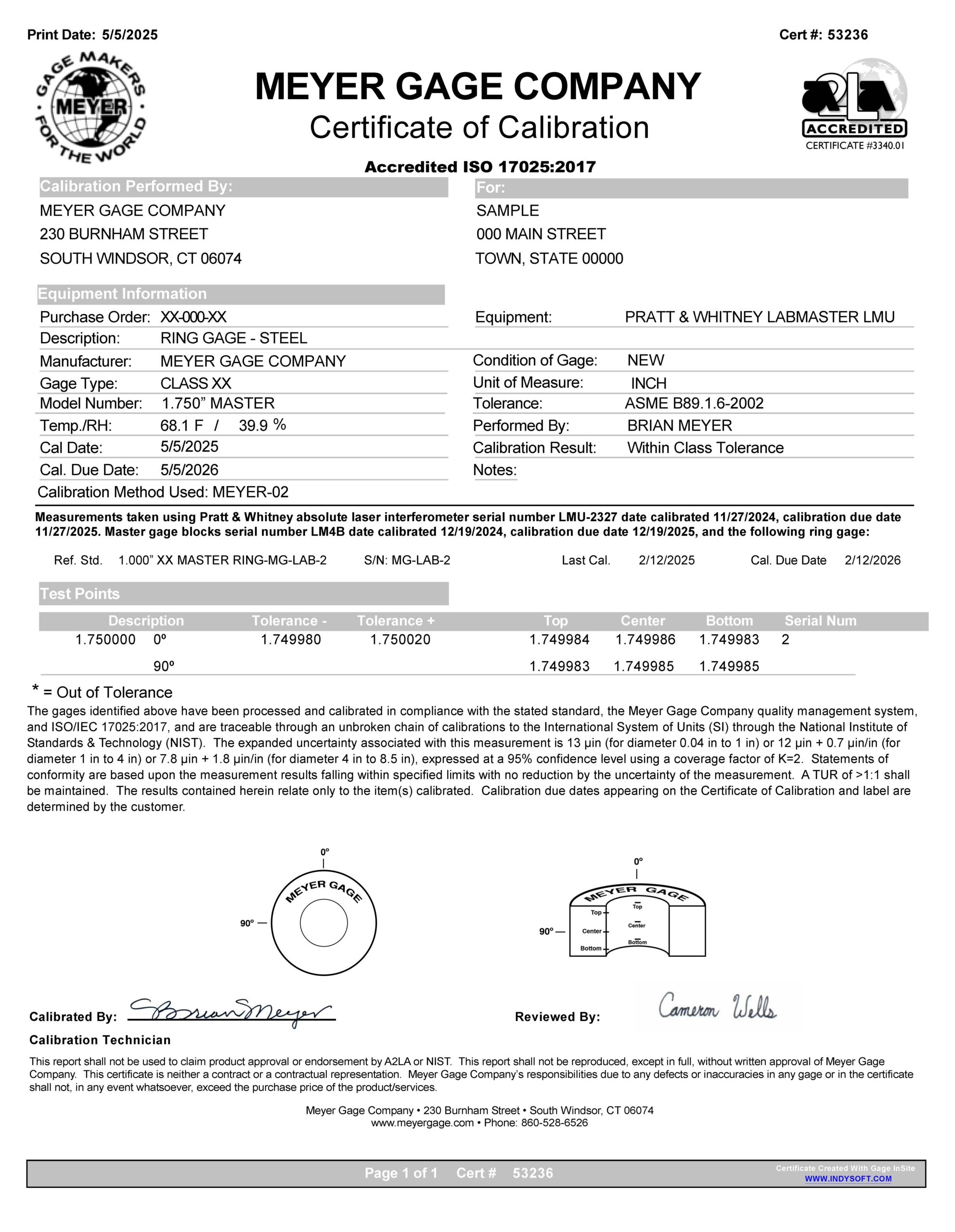

Calibration Certificate

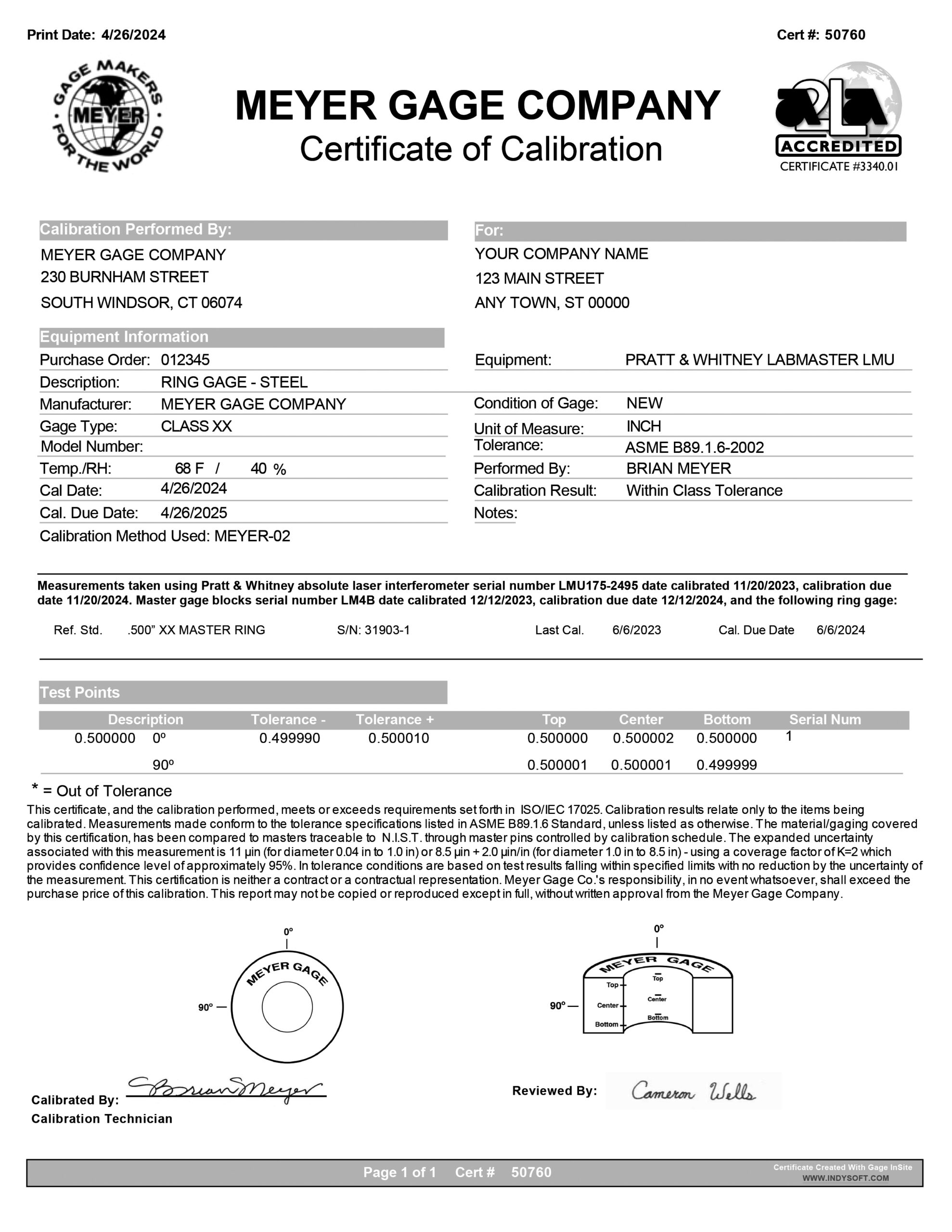

Calibration Certificate

Individual certificates and additional copies available upon request.

Long Form Calibration Reports are furnished with readings that are 4, 5, or 6 places to the right of the decimal point, in accordance with American National Standards Institute (ANSI) Standards. The measurement of master disc or cylindrical plug gages follows the guidelines outlined in ANSI Standard B89.1.5-1998. Similarly, the measurement of ring gages adheres to the specifications detailed in ANSI Standard B89.1.6-2002. In-tolerance conditions are based on test results occurring within specified limits.

Plain Individual Plug & Ring Gages

Class ZZ Pin Gage
Class Z Pin Gage
Class X Pin Gage
Class XX Pin Gage
Ring Gage
Master Setting Disc
Trilock Gage
Taperlock Gage
Progressive Gage
Class ZZ Custom Pin Gage
Class X Custom Pin Gage

Pin Gage Sets

Class ZZ Pin Gage
Class Z Pin Gage
Class X Pin Gage

Measuring Wires

Thread Wires (3-piece set)

We also calibrate other manufacturers’ products that customers send us.
